Stainless Steel Bag Filter Vessel, Bag Filter Manufacturer

Product Introduction

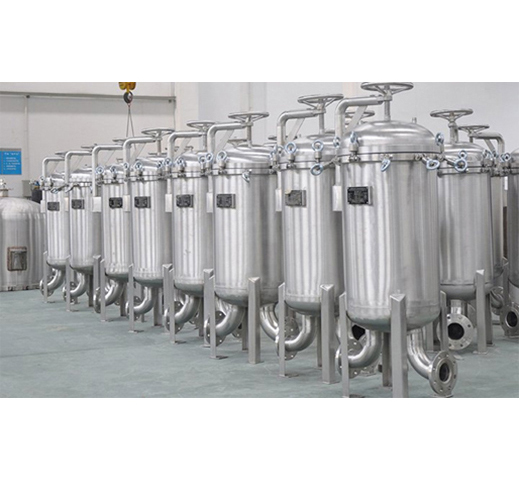

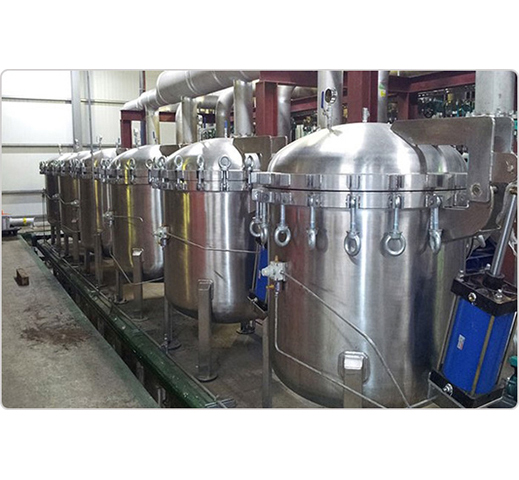

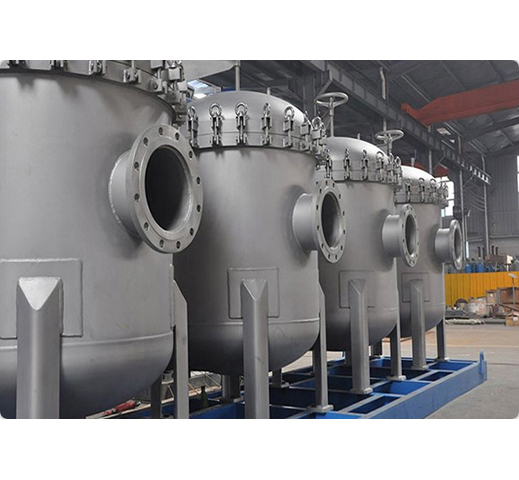

Bag filter vessel is a new type of filtering system, that offers an economical & high efficiency solution to your low-flow bag filtration requirements. The filter bag is supported by a metal mesh basket inside the bag filter. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. Impurities are intercepted in the filter bag. After replacing the filter bag, it can continue to be used.

Bag filter vessels are designed to meet industrial cooling circulating water, underground well water, medicine, food, chemical industry, environmental protection, water treatment all application requirements.
Features & Benefits

High Filtration Accuracy : low operating cost, easy to clean, replaceable filter bags, high filtration accuracy

Good Filtration Effect: the filter bag has a low chance of side leakage, which effectively guarantees the filtration quality

Low Operating Cost: bag filtration can carry a higher working pressure, with low pressure loss, low operating cost and obvious energy saving effect
Work Process

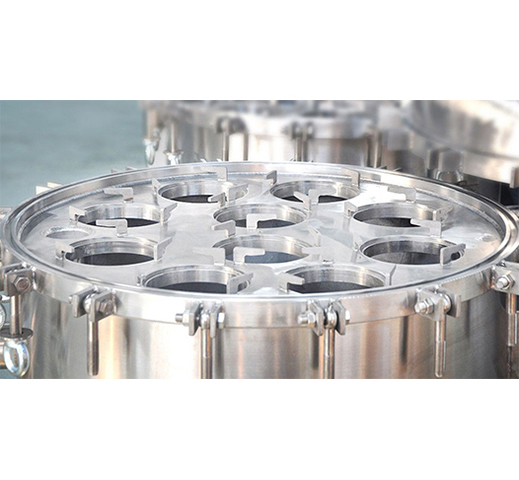

The bag filter vessel is supported by a metal mesh basket inside. The liquid flows in from the inlet, flows out from the outlet after being filtered by the filter bag, and the impurities are intercepted in the filter bag. After the filter bag is replaced, it can continue to be used. Through the filter bag, under the action of pressure, the original liquid passes through the filter bag, and the pollutants intercepted by the filter bag are retained in the filter bag, and the filter residue is left in the filter bag. The filtrate flows out along the wall of the metal supporting mesh basket, thereby achieving the purpose of filtration. The bag filter is often set after the pressure filter to remove fine particles in the liquid to meet the requirements of the subsequent process for water inlet.

Style	Pipe Diameter	ΦD	D1	D2	H1	H2	L	Number	Flowm³/h
ATD-15-450X	DN300	Φ1000	Φ325	Φ325	700	1530	1850	15	450
ATD-13-360X	DN250	Φ950	Φ273	Φ273	680	1510	1800	13	390
ATD-11-330X	DN250	Φ900	Φ273	Φ273	700	1530	1850	11	330
ATD-10-300X	DN250	Φ850	Φ273	Φ273	680	1510	1800	10	300
ATD-9-270X	DN200	Φ800	Φ219	Φ219	585	1445	1750	9	270
ATD-8-240X	DN200	Φ750	Φ219	Φ219	570	1430	1700	8	240
ATD-7-210X	DN200	Φ700	Φ219	Φ219	560	1420	1650	7	210
ATD-6-180X	DN150	Φ650	Φ159	Φ159	520	1390	1600	6	180
ATD-4-120X	DN100	Φ550	Φ108	Φ108	460	1325	1550	4	120
ATD-3-90X	DN100	Φ450	Φ108	Φ108	440	1300	1500	3	90
ATD-2-60X	DN80	Φ400	Φ89	Φ89	400	1225	1450	2	60
ATD-1-30X	DN50	Φ219	Φ57	Φ57	320	1150	1310	1	30
ATD-1-15X	DN40	Φ219	Φ48	Φ48	320	750	900	1	15
