Activated Carbon Filter Vessel, Activated Carbon Filter Manufacturer

Product Introduction

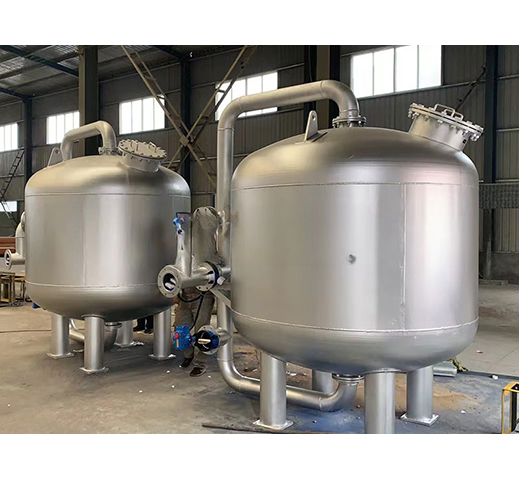

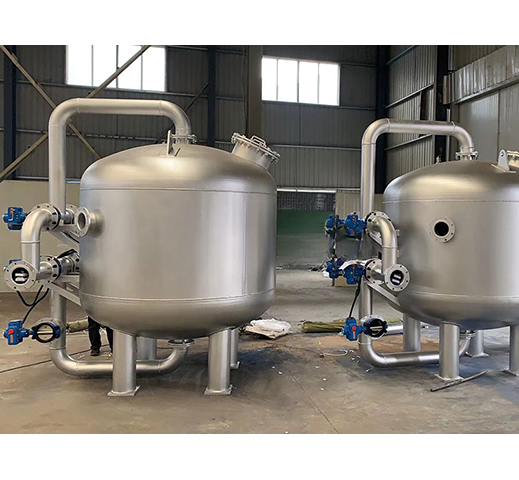

Activated carbon filter vessel is a common process for pretreatment of pure water system. It uses activated carbon with a large number of micropores and huge specific surface area as filter material, which has strong physical adsorption capacity. The main function of pure water activated carbon filter is to adsorb residual chlorine and organic matter, and it also has a significant adsorption and removal effect on odor, colloid and pigment in water.
Features & Benefits

High Efficiency: 24-hour continuous operation without stopping for backwashing.

Low Operating Cost: no need for a high-lift, high-flow backwashing pump.

Low Maintenance Cost: There are no rotating parts except the activated carbon filter material during operation, low failure rate, and low maintenance cost.

Low One-time Investment: no need to set up separate coagulation tanks, clarification tanks and other facilities, no need for backwashing pumps and electric, pneumatic valves and other equipment, small engineering volume, and low one-time investment.

Small Head Loss:single filter material and timely cleaning of the filter material, small head loss, total head loss ≤0.5m.

The Requirements for Inlet Water Quality Are Loose: it can withstand 150mg/L SS inlet water quality for a long time, and withstand 300mg/L SS inlet water quality for a short time without changing the outlet water quality.

The outlet water quality is stable and the filtering effect is good. The filter material is cleaned in time to ensure high-quality and stable outlet water effect without periodic water quality fluctuations.

Easy To Modify and Expand: the unit operation method adopted can flexibly increase or decrease the number of filters according to the change of water volume, which is easy to modify and expand.

Small footprint and beautiful appearance.

Style	Inlet & Outlet Diameter	ΦDxH	Exhaust Port	T	Flow(T/H)	Weight(KG)
AT-SYS500	DN50	Φ500x2150	DN15	0.35	2	380
AT-SYS600	DN50	Φ600x2250	DN15	0.5	3	480
AT-SYS800	DN65	Φ800x2450	DN20	0.8	5	680
AT-SYS1000	DN65	Φ1000x2550	DN20	1.3	8	950
AT-SYS1200	DN65	Φ1200x2650	DN20	1.9	12	1150
AT-SYS1500	DN80	Φ1500x2850	DN32	2.9	18	1550
AT-SYS1600	DN80	Φ1600x2850	DN32	3.5	20	1750
AT-SYS1800	DN100	Φ1800x2950	DN32	4.3	25	1950
AT-SYS2000	DN100	Φ2000x3150	DN40	5.6	30	2550
AT-SYS2200	DN125	Φ2200x3300	DN40	6.5	40	3050
AT-SYS2400	DN125	Φ2400x3400	DN40	7.8	45	3550
AT-SYS2500	DN125	Φ2500x3450	DN32	8.75	50	3850
AT-SYS2600	DN150	Φ2600x3450	DN32	9.3	60	4150
AT-SYS2800	DN150	Φ2800x3600	DN40	11.5	80	4550
AT-SYS3000	DN219	Φ3000x3900	DN40	12.2	100	5050
AT-SYS3200	DN219	Φ3200x4500	DN40	14	120	5550
AT-SYS3400	DN250	Φ3400x4600	DN40	15.75	150	6800
AT-SYS3600	DN250	Φ3600x4650	DN40	17.5	180	7500
