Carbonization Furnace, Continuous Carbonization Furnace Manufacturer

Product Introduction

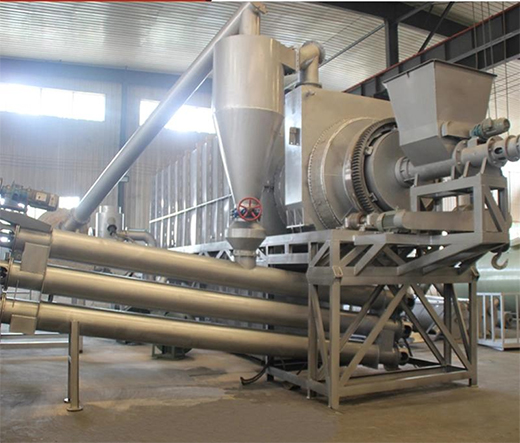

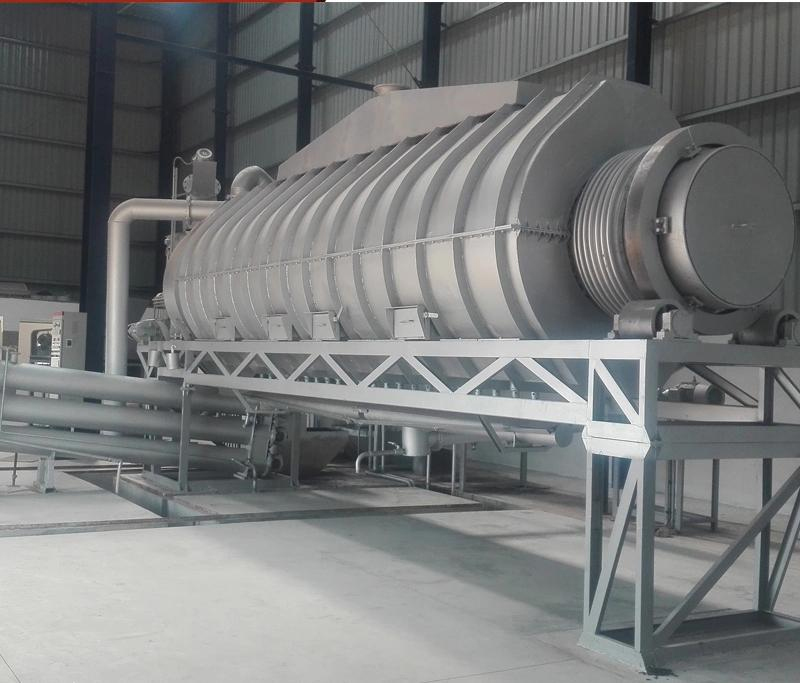

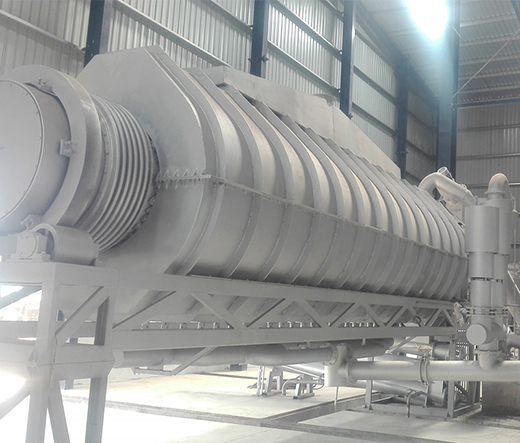

The smokeless continuous carbonization furnace consists of a conveyor, a high-temperature furnace, dust removal, decoking, purification, a gas cabinet, a power distribution cabinet and other equipment. It is the latest developed continuous carbonization equipment that is efficient, environmentally friendly and intelligent.

This equipment is the latest carbonization equipment in China that integrates the co-production of "carbon, gas, oil and fertilizer". It can carbonize a variety of materials, such as straw, branches, wood chips, fungus materials, etc. It has no strict requirements on the materials and can be directly carbonized without crushing. It also realizes production processes such as continuous feeding, continuous carbonization, layered carbonization, intelligent control, automatic collection of tar and combustible gas, thereby improving the quality of carbon powder, solving the various drawbacks of traditional carbonization production such as low efficiency and high labor intensity, and truly realizing the efficient and rational utilization of renewable resources.

Raw materials: Seeds; shells and pits of tree-fruits; wood chips; bamboo; shrubby and other plant materials, the fraction of which is from 5 to 30 mm with a moisture content of not more than 15%.
Features & Benefits

Environmental Friendliness: By recycling and purifying combustible gases such as carbon monoxide, methane, and oxygen, harmful emissions during the carbonization process are reduced, leading to a decrease in environmental pollution. This contributes to the protection of the surrounding ecosystem and air quality.

Energy Self-Sufficiency: Through the cyclic combustion of combustible gases, your charcoal furnace can generate the required thermal energy, reducing dependence on external energy sources and enhancing the economic efficiency of the carbonization process.

Continuity: With the adoption of this advanced technology, the charcoal furnace can achieve higher levels of continuity, reducing downtime and maintenance periods, thereby improving production efficiency.

Cost-Effectiveness: By fully utilizing agricultural and forestry residues as raw materials and supplying its own energy needs, the furnace can lower production costs, enhancing its cost-effectiveness.

Resource Utilization: The transformation of agricultural and forestry residues into charcoal products results in efficient resource utilization, minimizing waste generation and providing valuable products for production.

High automation: This equipment incorporates an intelligent control system, saving labor and advancing towards high efficiency, automation, and intelligence.

Utilization of renewable energy: During the carbonization process, it can automatically collect tar, wood vinegar liquid, and combustible gases, enabling the efficient utilization of renewable energy.

Model	800	1000	1200	1500	1800	2000
Number of cylinder layers	Single	Single	Double	Double	Double	Double
Cylinder diameter	800mm	1000mm	1200/700mm	1500/900mm	1800/1200mm	2000/1500mm
Capacity	200-300kg/h	300-400kg/h	450-600kg/h	600-800kg/h	800-1000kg/h	1000-1200kg/h
Cylinder material	309S/310S/316L	309S/310S/316L	309S/310S/316L	309S/310S/316L	309S/310S/316L	309S/310S/316L
Power	1.5kw	2.2kw	5.5kw	7.5kw	11kw	15kw
Temerature	500-800ºC
Carbonization time	20-60min
Raw material particle size	≤4cm
Heating method	indirect heating
Operation mode	continuously working
Control method	PLC control
Induced draft fan power	1.5kw	2.2kw	7.5kw	11kw	18.5kw	22kw
Preheat burner model	10kcal×3	10kcal×4	15kcal×4	20kcal×4	30kcal×4	30kcal×6
Preheat burner fuel	Fuel oil/gas/biomass/coal gas/biomass synthesis gas
